INTEGRAL MODULE

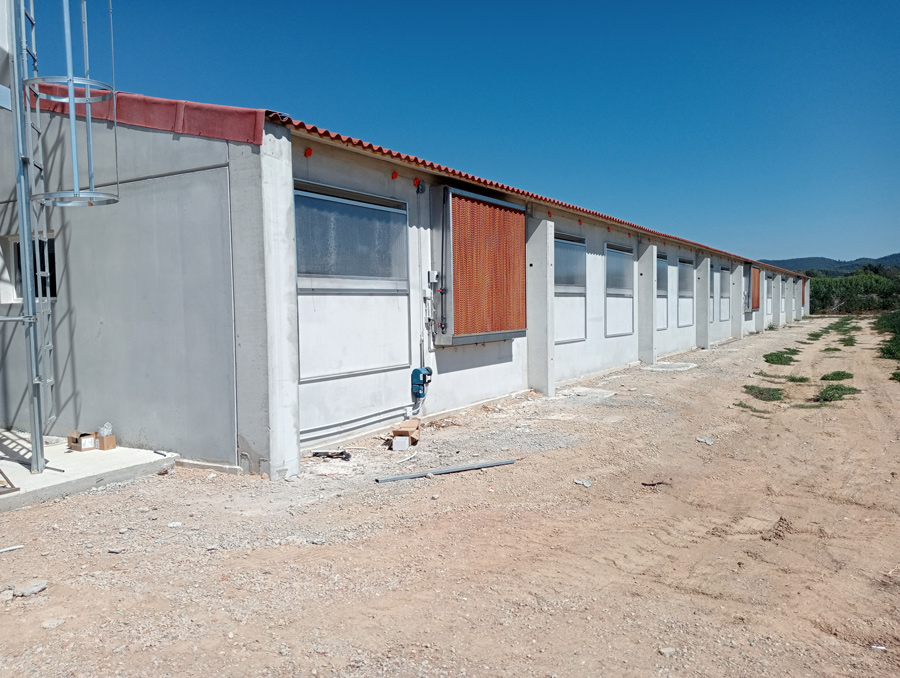

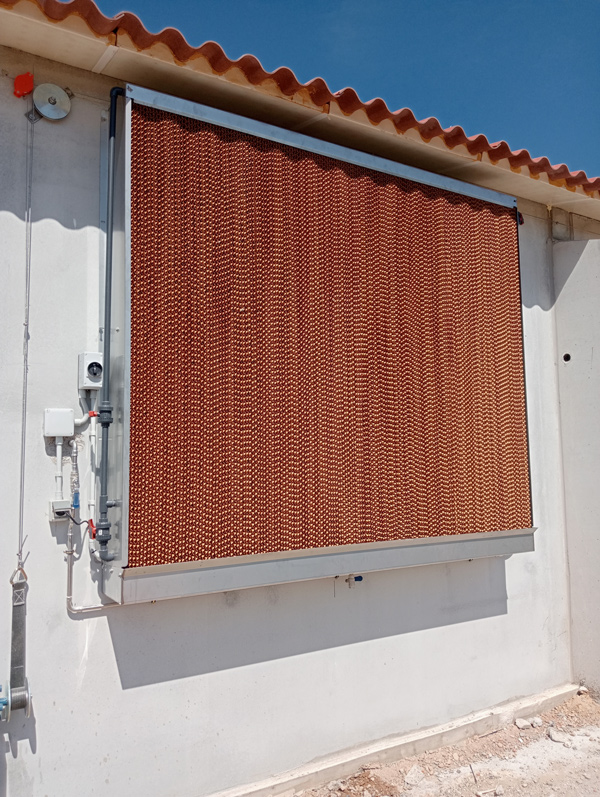

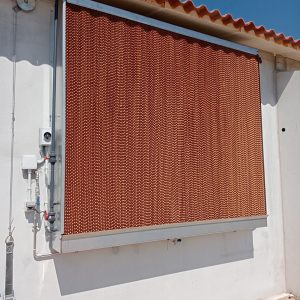

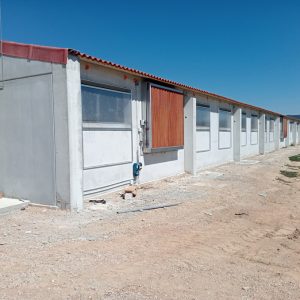

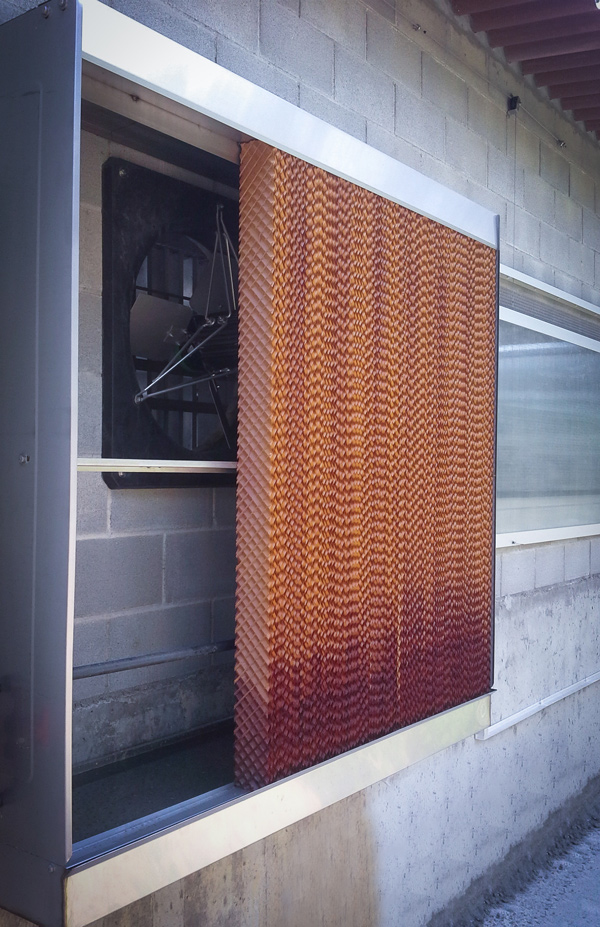

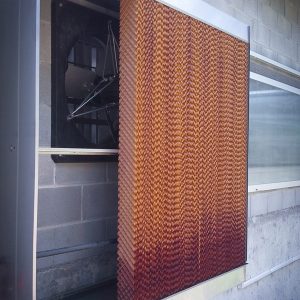

These refrigeration units are installed hanging with stainless steel brackets on the exterior façade of the farmhouse adjusted to the size of the windows. With the building's own cross ventilation, we manage to cool the air that passes through the cellulose panels , which are constantly moistened with fresh water. In this way, cooler air enters the house, with a higher level of humidity and at the same time cleaner, purer and filtered of particles from the outside.

This modular refrigerator is designed for customers who need to cool and humidify their buildings individually and have the equipment work independently in their own water circuit . The integration of all hydraulic components in the module makes it quick and easy to install water, and it is only necessary to connect the water inlet to the buoy, and connect the pump to the light.

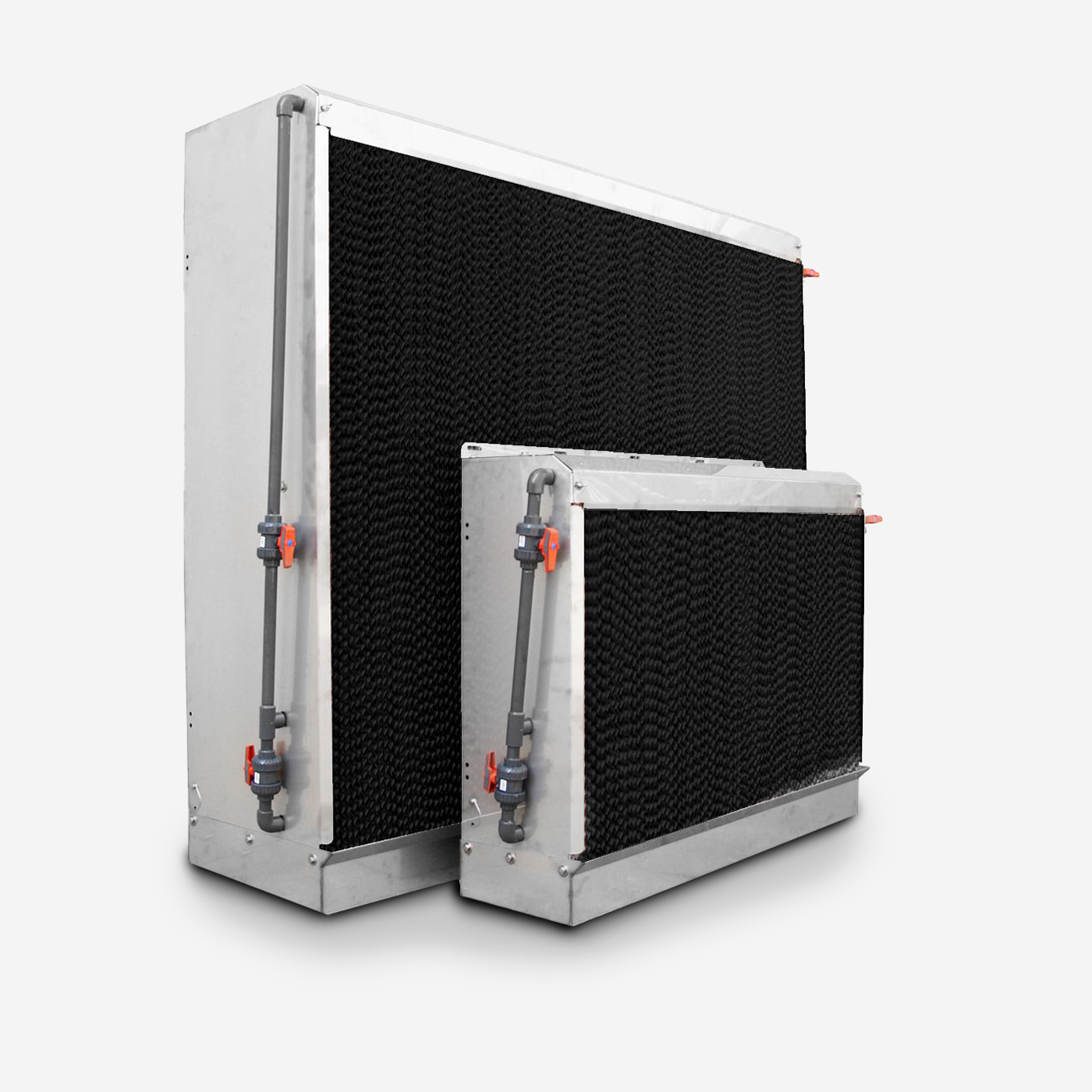

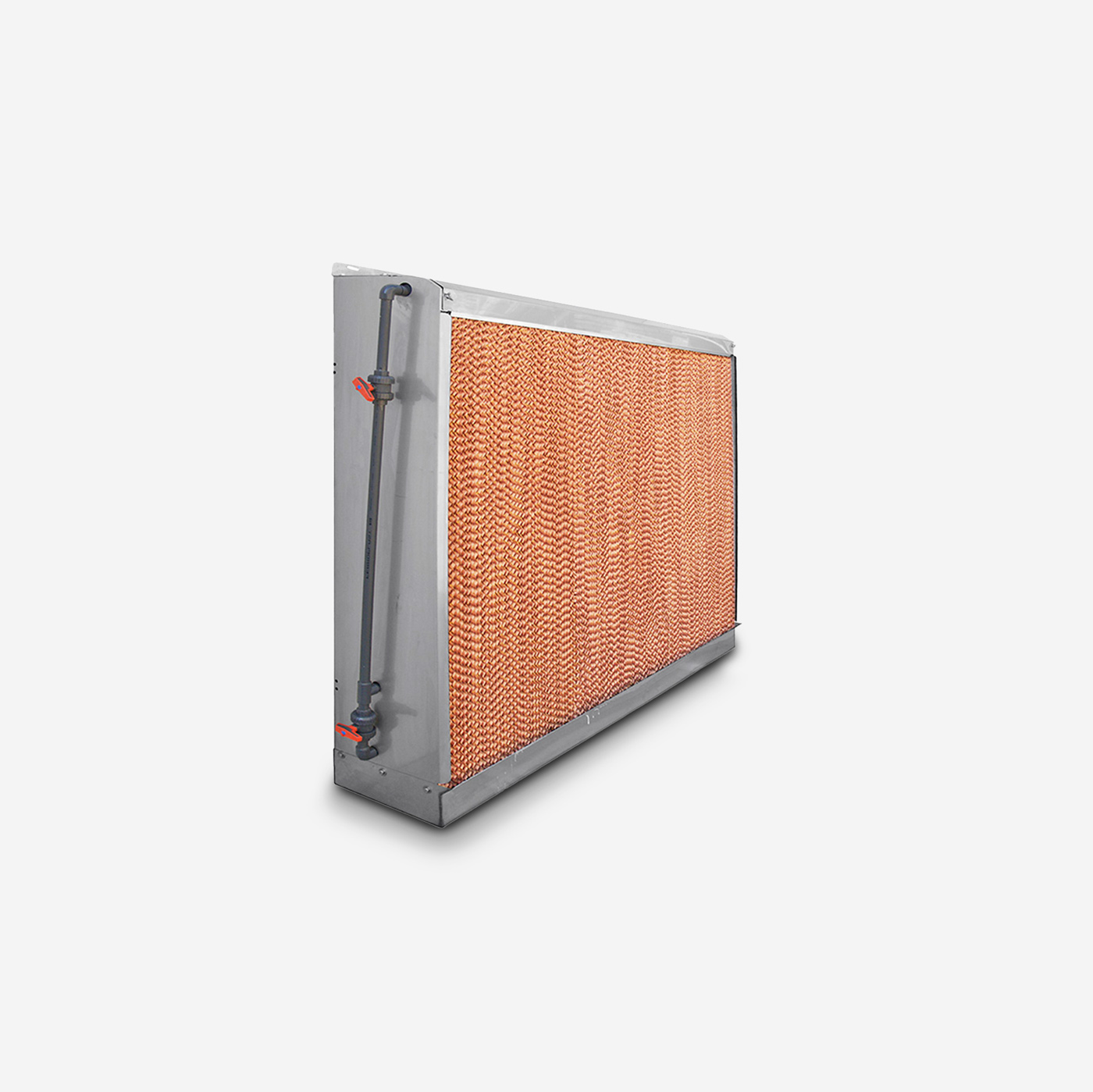

Each of the integral modules has a built-in buoy that regulates the water inlet, the water tank, the water pump, the water circuit and the purge valves. They are also equipped with two stopcocks to regulate the flow of water entering and the water circulating in the closed circuit to control water consumption.

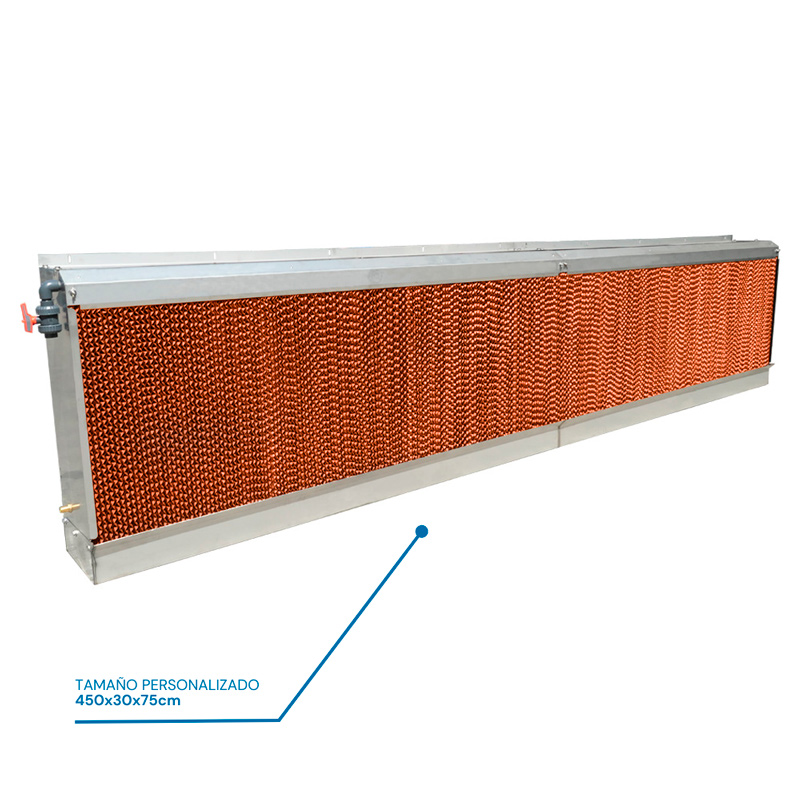

We manufacture the integral modules combining different standard measures of (W) width, (L) length and (H) height. In this way, we can configure an endless number of sizes that adapt to the windows of each client's farm. However, we also offer the possibility of customizing the measurements of each module.
