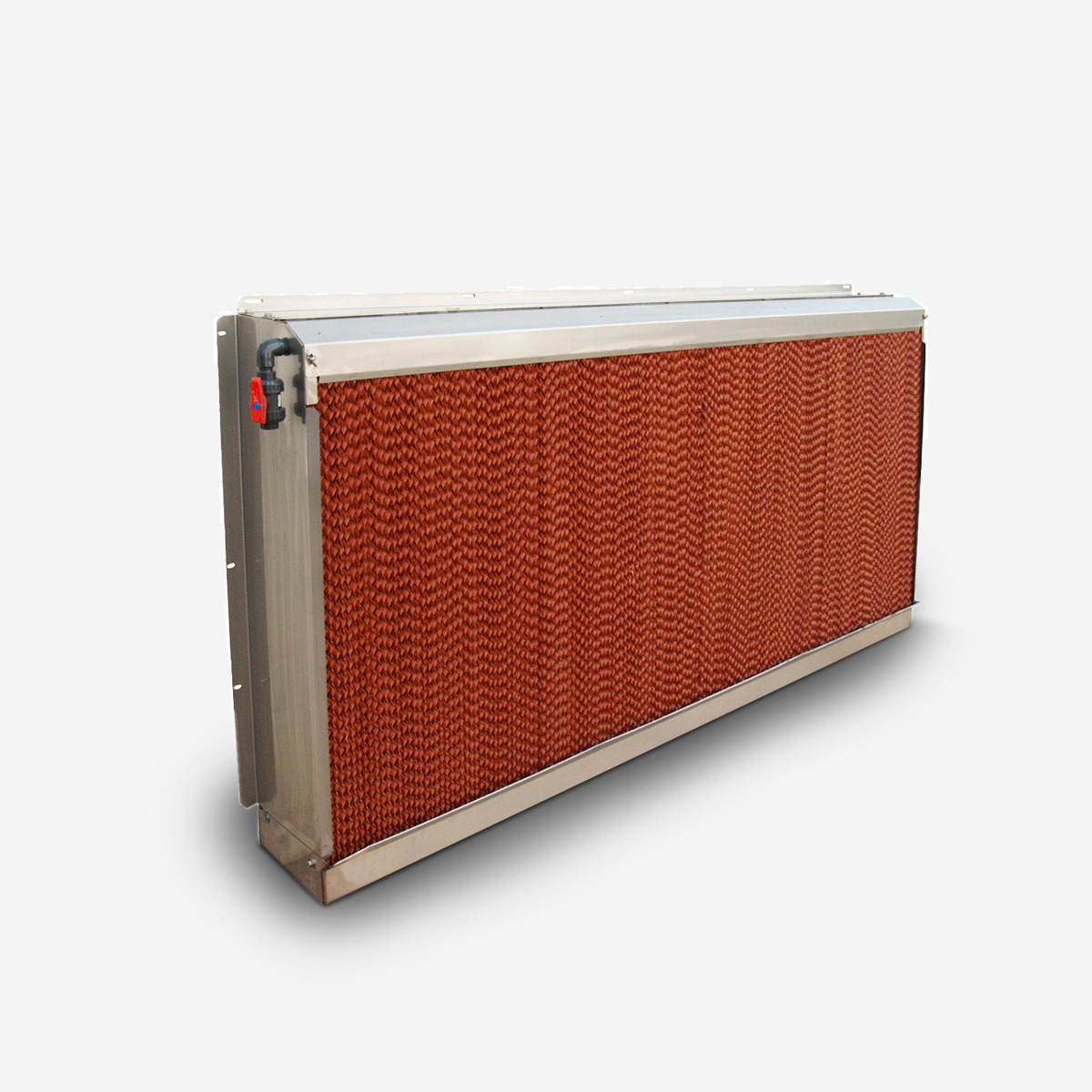

ECO MODULE

The eco cooling module offers a combined humidification and cooling solution. The eco modules have to be connected together, thus sharing all hydraulic components.

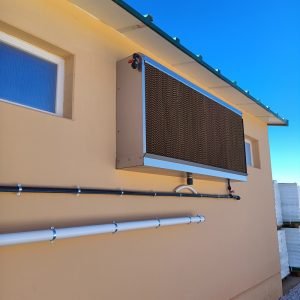

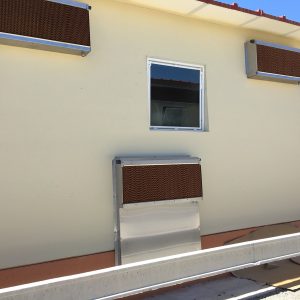

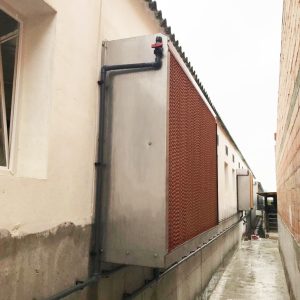

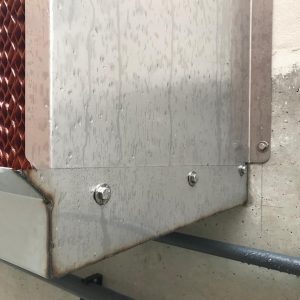

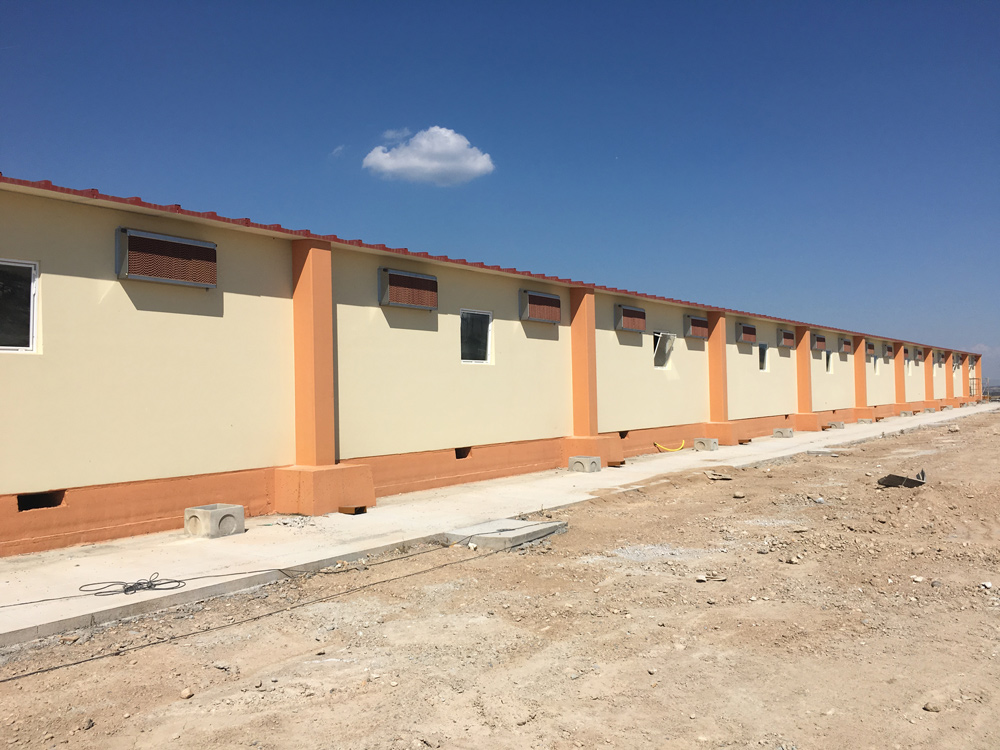

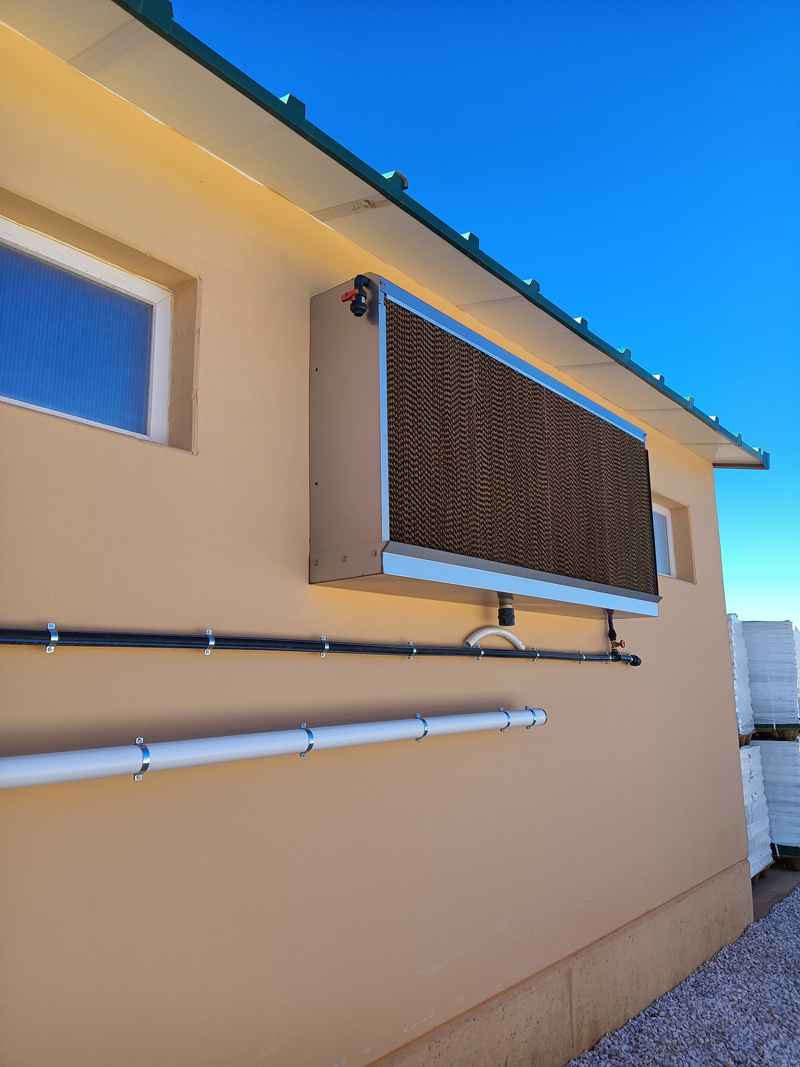

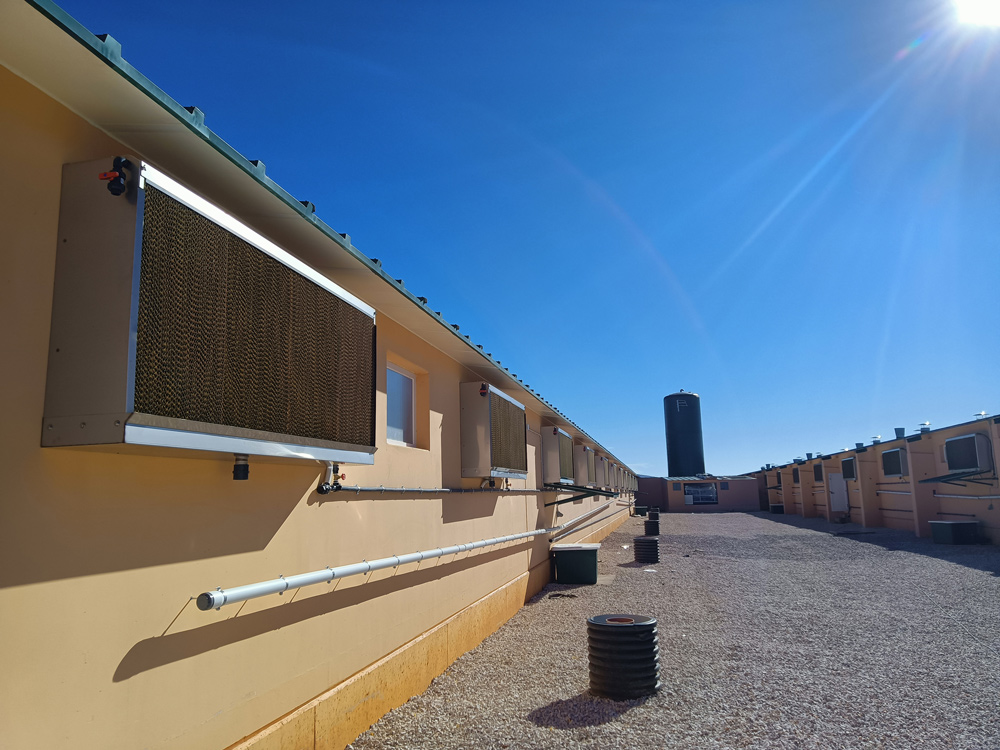

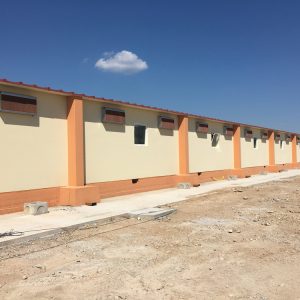

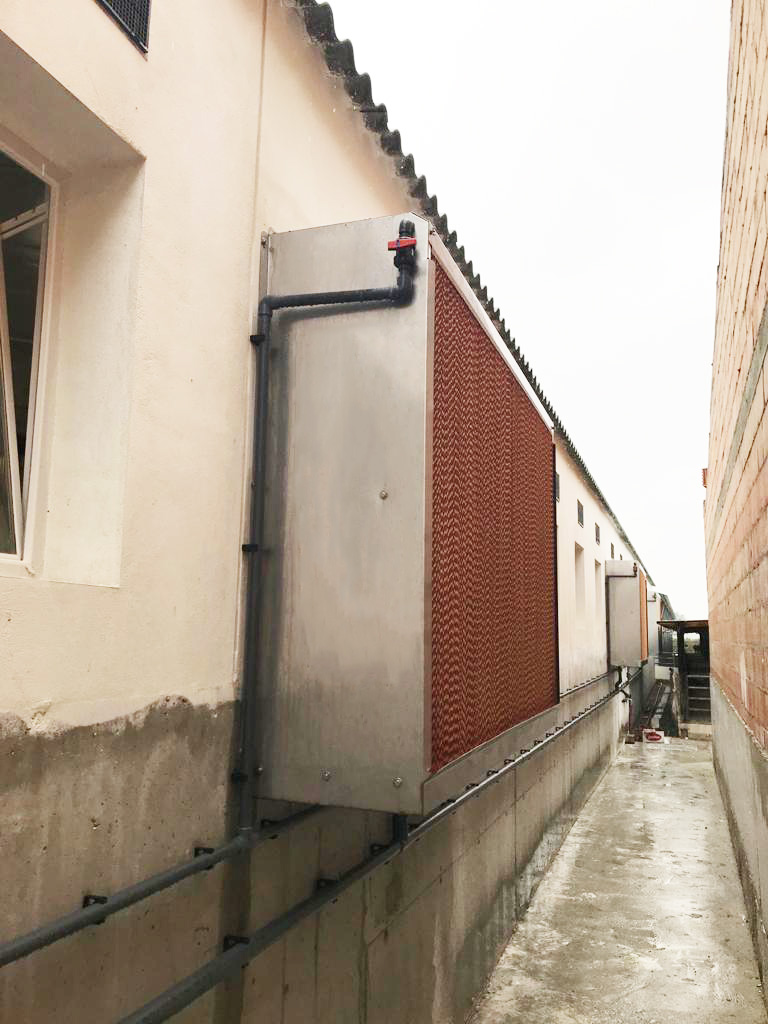

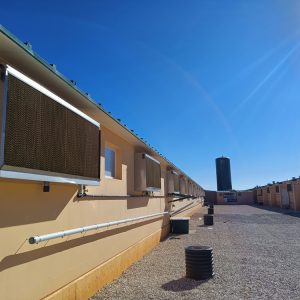

These cooling units are installed hanging with stainless steel brackets on the exterior facade of the farm, adjusted to the size of the windows. The air is cooled by the cross ventilation of the house itself, which passes through the cellulose panels. cellulose panels constantly moistened with water. In this way, cooler air enters the building, with a higher humidity level and at the same time cleaner, purer and filtered of particles coming from the outside.

This modular chiller is designed for customers who need to cool and humidify an entire building at the same time. With all units working in series in a single shared water circuit. The fact of sharing the water circuit means that only the water inlet and outlet of each eco module needs to be connected to the next one.

With this system we manage to unify the water circuit of several modules. Centralizing in one point of the farm a single water tank (not included) and a single water pump (not included). The required flow power of this pump must be calculated according to the quantity and length of all the eco modules in the circuit (0.5 m³/h x linear m).

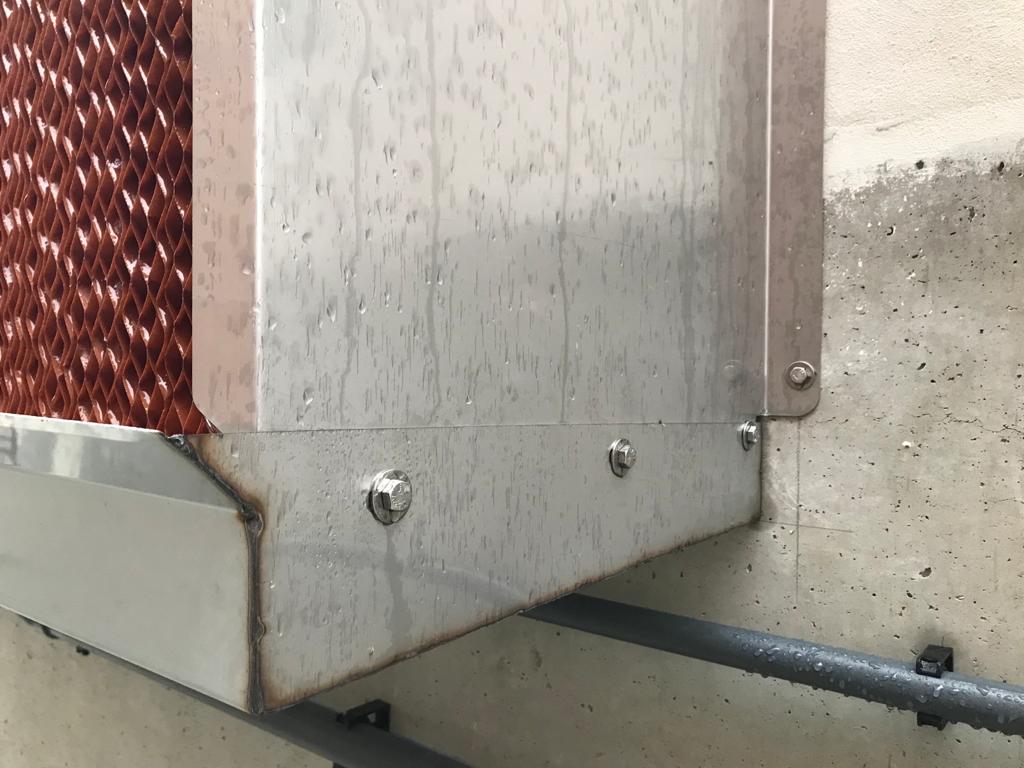

The base of the eco module collects the water and carries it to the common water tank and then pumps it back, closing the cooling circuit. Each eco module has its own drain valve to clean the possible accumulation of particles in the circuit.

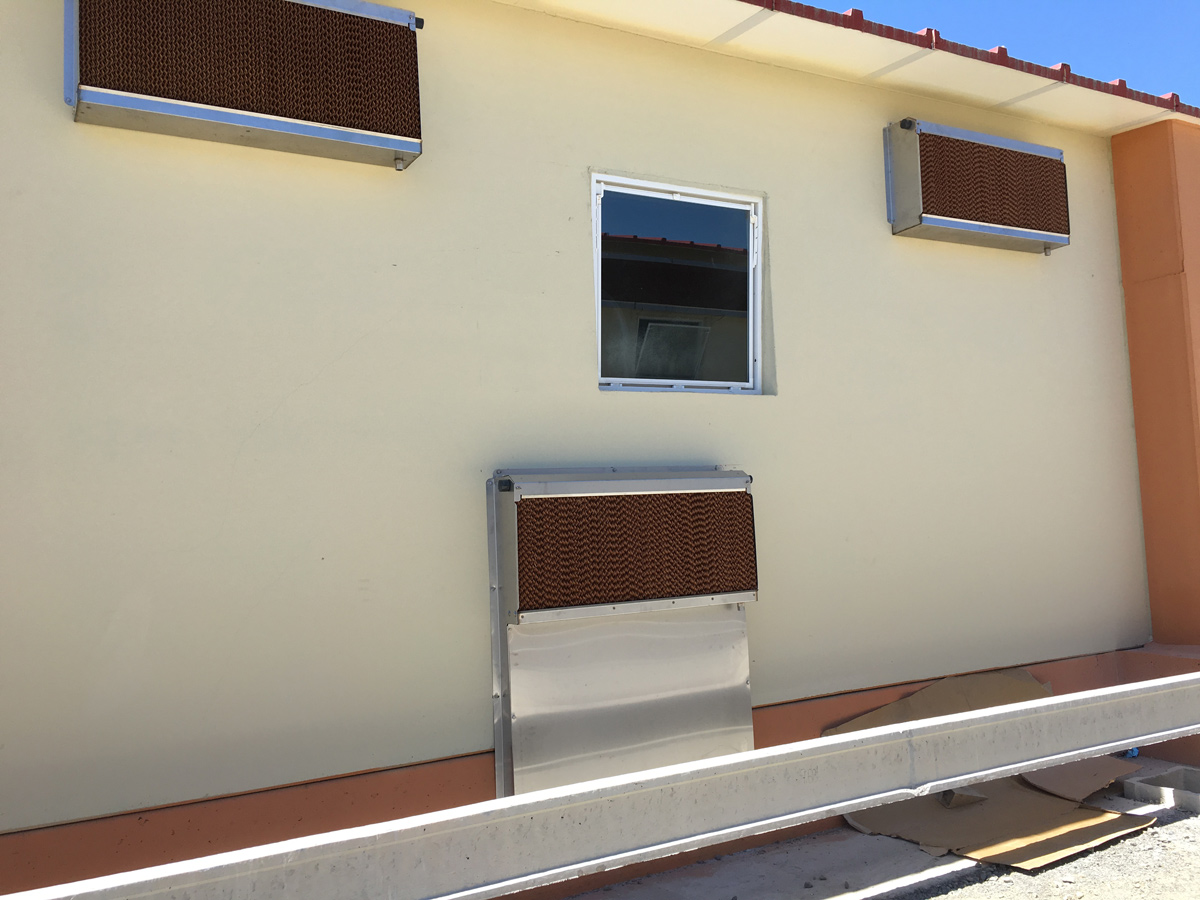

We manufacture the integral modules combining different standard measures of (W) width, (L) length and (H) height. In this way, we can configure an endless number of sizes that adapt to the windows of each client's farm. However, we also offer the possibility of customizing the measurements of each module.
