DETAIL OF THE PRODUCT

UNIT OF MANUAL LOADING

ref.

general

000.013

*Consult measurements for specific references

DESCRIPTION

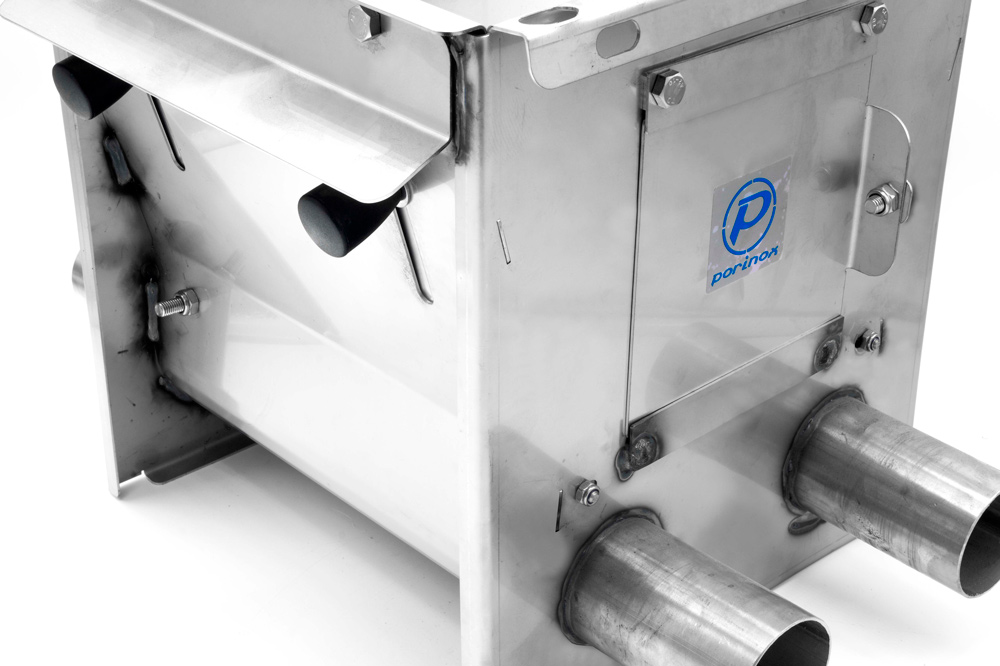

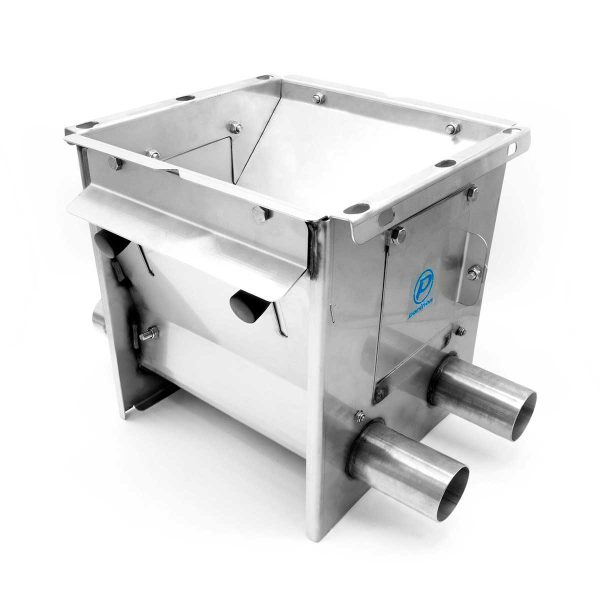

Porinox has developed 2 models of loading unit, with 1 and 2 outlets, for ø60mm pipe. Fixed with 6 M8 screws to the silo outlet. Manufactured in 1.5mm 304 stainless steel. The locking system is integrated into the body, ensuring better locking and operation.
MEASUREMENTS
1 output
ref. 000.013.100
Width: 510mm
Height: 345mm
Depth: 360mm
2 outlets
ref. 000.013.200
Width: 510mm
Height: 345mm
Depth: 375mm
MATERIALS
304 stainless steel
CHARACTERISTICS
Inspection cover
Welded sockets for Ø60mm tube
Integrated locking
Integrated vibrating hammer
Locking knob made of PVC
Easy installation
THICKNESS
1,5mm
